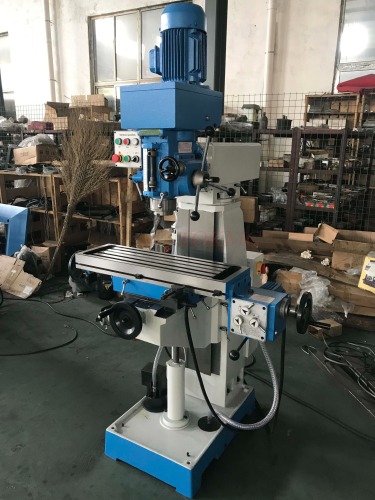

Vertical milling drilling machine zx7550z

Item No.: 192
All gear box spindle box
3 speeds spindle auto feed
Micro feed device
Add to Inquiry
Description

Item

ZX7550Z

Spindle taper

ISO40

Distance from spindle to table

90-420mm

Spindle speeds

(8step)90-2000r.p.m(V)

Spindle travel

120mm

Max.drilling capacity of auto-feeding

50mm

Head movement

±45°

Table size

800×240mm

Table travel(horizontal/Cross/Vertical)

400/230/350mm

T-slot number/Width/Distance

3/14mm/60mm

Horse power for main motor

2.2kw

X axis driving motor

370W

Coolant pump power

40W(12L)

Overall dimension

1290x1220x2100mm

Packing size

1140x1220x2220mm
