Item |

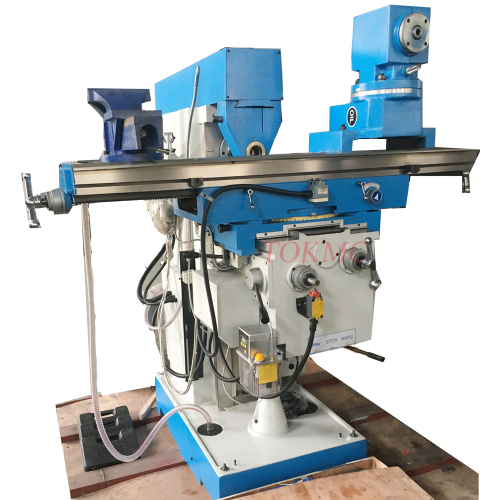

X6136A table swivel |
|
Spindle taper |
ISO50(H) |
|
Distance from spindle to table |
0-400mm |
|
Spindle speeds |
60-1800r.p.m(H) |
|
Table size |
1250×360mm |
|
Table travel(Horizontal/Cross/Vertical) |
600/320/400mm |
|
Feeding range of longitudinal.cross travel |
22-555nn/min(8steps) |
|
X,Y-axis rapid feed speed |
1080mm/min |
|
Z-axis rapid feed speed |
590mm/min |
|
Z-axis motor power |
1.1kw |
|
Max.weight of workpiece |
400kg |
|
T-slot number/Width/Distance |
3/18mm/80mm |
|
Milling head moving(Vertical) |
dovetail |
|
Cross slide way |
Rectangular |
|
Longitudinal slide way |
dovetail |
|
Horse power for main motor |
4kw |
|
Coolant pump power |
90W(25L) |
|
X,Y axis driving motor |
750W |
|
Overall dimension |
1850×1790×1880mm |
|
Packing size |
1800×1900×2250mm |
|
2300×1900×2250mm |
|
|
N.W./G.W. |
2100/2200kg(4200/4400kg) |
