Specifications |
Unit |

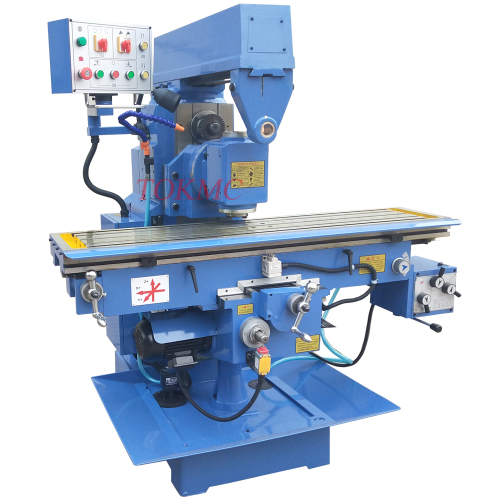

X6032 |
|
Table size |
mm |
1500x320 |
|
Table travel X,Y ,Z axis |
Mm |
800x300x400 |
|
T-slot (NO.-width-Pitch) |
|
3-16-70 |
|
Spindle taper |
|
ISO40 7:24 |
|
Spindle speed range |
Rpm |
40-1300 (12 steps) |
|
Distance between spindle axis and table surface |
Mm |
0-400 |
|
Main motor power |
Kw |
3 |
|
Weight |
Kg |
2050 |
|
Machine size |
Cm |
207x190x185 |
