Machine Model |
Units |

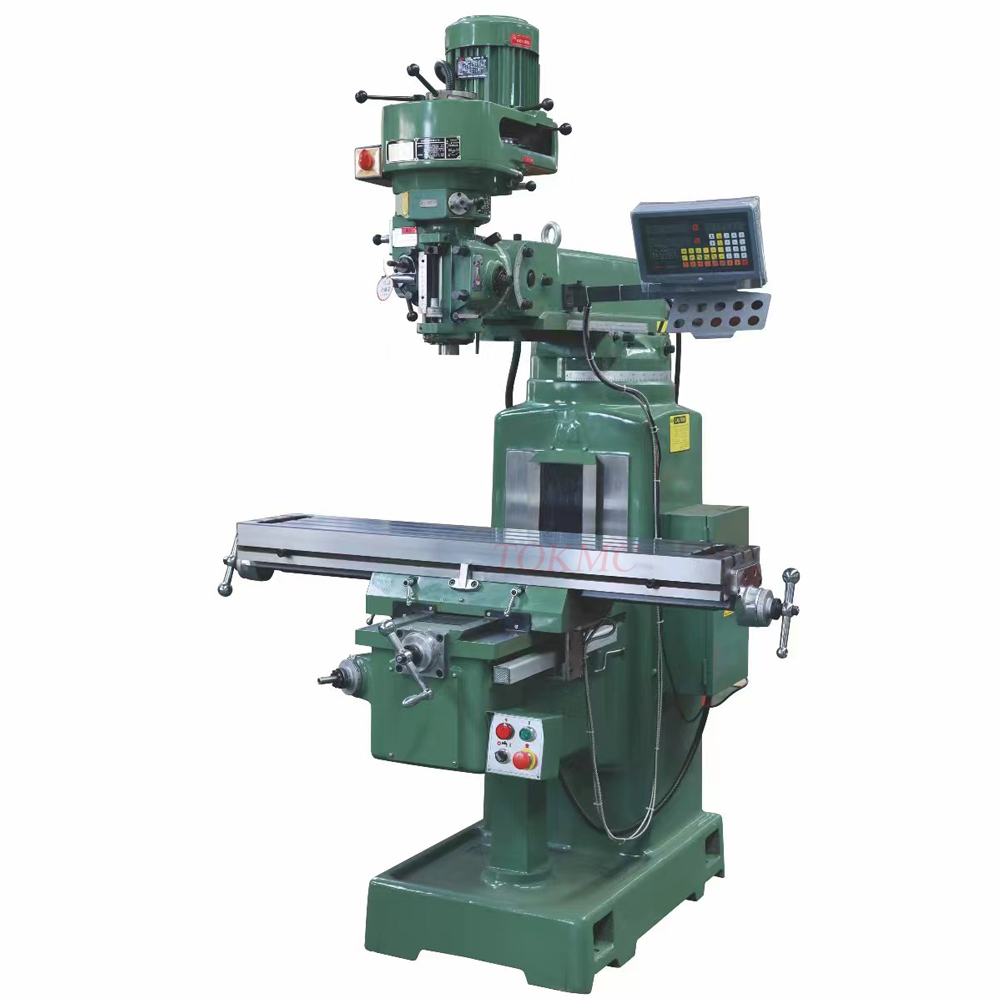

X6325H |
|
|
Worktable Dimensions |
mm |
320x1500 |
|
|
Inch |
10”*50” |
||
|
Working table |
X-axis |
mm |
1000 |
|
Y-axis |
mm |
400 |
|
|
Z-axis |
mm |
400 |
|
|
ground way |
Y-axis |
|
Rectangular Guideway |
|
Z-axis |
|
Dovetail Guideway |
|
|
Spindle |
Spindle Taper |
|
R8/NT30/ISO40 |
|
Spindle Travel |
mm |
127 |
|
|
Spindle Speed |
steps |
16 |
|
|
Spindle Feed |
mm |
0.076/0.003" 0.038/0.0015" 0.203/0.008" |
|
|
Low Range |
r/min |
66、110、175、270、550、930、1460、2270 |
|
|
High Range |
r/min |
132、220、350、540、1100、1860、2920、4540 |
|
|
T-slot |
Slot Number X Width |
mm |
3X16 |
|
T-slot Pitch |
mm |
65 |
|
|
Voltage |
V |
220/380/415 |
|
|
Motor |
Frequency |
HZ |
50/60 |
|
Head Motor |
HP |
3 (2.2kw) |
|
|
Coolant Motor |
HP |
1/8 |
|
|
Max.Working Piece Weight |
kg |
300 |
|
|
Saddle W*L |
mm |
285*510 |
|
|
Ram Travel |
mm |
400 |
|
|
Spindle Diameter |
mm |
85.7 |
|
|
From spindle center to body |
mm |
230-600 |
|
|
From spindle nose to working table |
mm |
105-475 |
|
|
Machine Dimension L*W*H |
mm |
2100x1700x2110 MM | |
