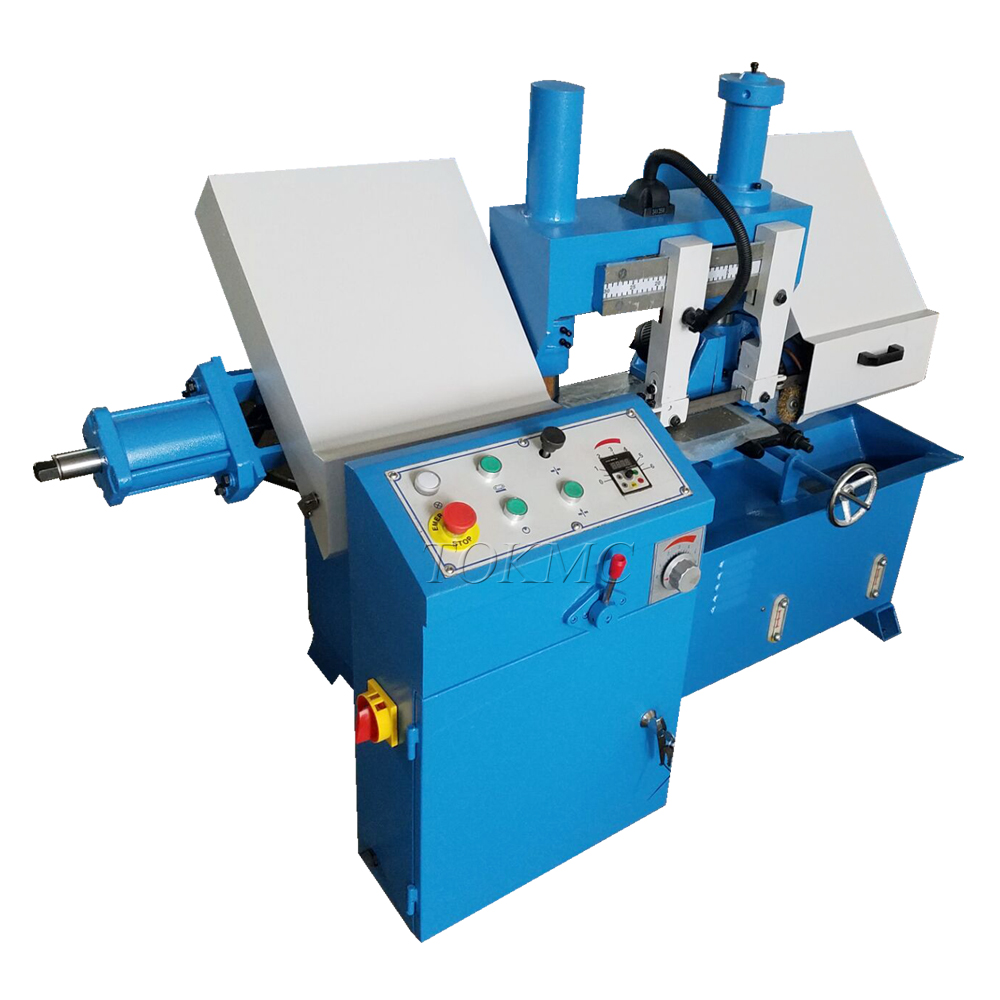

Name: 280mm,350mm double column band saw
Brand: Zaozhuang Tok Machinery Co.,ltd
SKU: 074
Availability: InStock
Rating: 5 (1 reviews)

Home > Saw machine

Categories

manual electric shear

Slotting machine/Shaper

Garage equipment

Grinder

Machine Accessory

HOT PRODUCTS

Ballscrew Universal swivel head milling machine

pan box brake W1.0x610A

Description

1.Saw frame travels across solid dual-column guides
2.Rigid, adjustable saw blade guides prevent lateral escape of the saw blade and ensure maximum angular accuracy
3.Ideally positioned control panel within comfortable reach on top of the saw frame
4.At the end of each sawing cycle, the saw blade frame will automatically return to the home position
5.Tthrottle valve allows infinitely variable saw frame feed
6.Two cutting speeds for a wide spectrum of materials and workpiece diameters
7.Manually adjustable workpiece clamping and linear stop
8.Coolant system

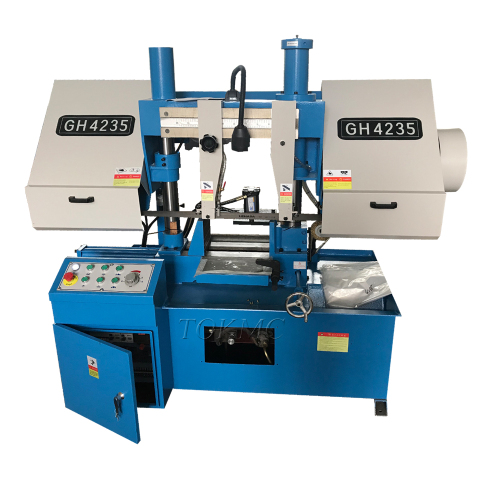

Model	GH4220	GH4228	GH4235
Cutting capacity mm	200-200x200	280-280x280	350-350x350
Blade size mm	2650x27x0.9	3505x34x1.1	4115x34x1.1
Balde speed m/min	27,45,69	27,45,69	27,45,69
Clamping type	manual	hydraulic	hydraulic
Main motor power kw	1.5	2.2	3
Motor hydraulic kw	0.55	0.55	0.55
Coolant pump kw	0.04	0.04	0.04
machineSize cm	130x80x110	186x100x140	200x110x150
N.W kgs	800	1000	1200
CNC optional

optional accessory:
1. bulk clamping
2.Open the door and power off
3.cut off protection
4.saw blade protection
5.Auto roller stand from 1300 to 3000 mm
6.Saw band hydraulic tensioning
7.Hydraulic chip removal
8.Saw belt stepless speed regulation
