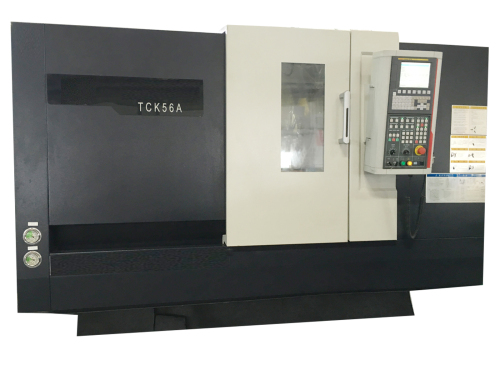

500mm Slant bed linear guideway cnc lathe Fanuc Siemens

Item No.: 141
High accuracy taiwan linear guideway
High speed spindle unit,
High rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Add to Inquiry
Cnc lathe is used for process all kinds of small middle size shaft and plate. Turn various threads,circle arc,circle cone, inside and outside surface of revovled body. CNC lathe is widely used in Sanitary, valve,electrical applicance, instrument, automobile,motorcycle,bearings etc.
Specification unit TOK50
Max.swing over bed mm 560
Max.swing over cross slide mm 260
Max.processing length mm 500
Spindle unit mm 200
Spindle nose (optional chuck)   A2-6
The spindle motor power Kw 11
Max.spindle speed rpm 3000
Spindle bore mm 66
Bar capacity mm 55
The X/Y axis screw specifications   3210 /4010
Max. X axis travel mm 240
Max.Z axis travel mm 540
Motor torque on X axis N.M 10
Motor torque on Z axis N.M 10
X/Z axis repeatability mm ±0.003
Tool turret (optional)   8T/12T
Center height on tool turret mm 100
Hdyraulic quill dia. mm 70
Hydraulic quill traverse mm 80
Hydraulic quill taper   M.T5
Hyraulic tailstock travel mm 450
Machine size (LxWxH) mm 2600x1850x2000
Net Weight Kg 3000
