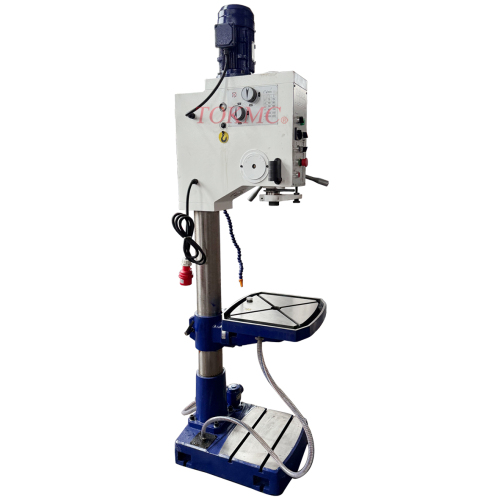

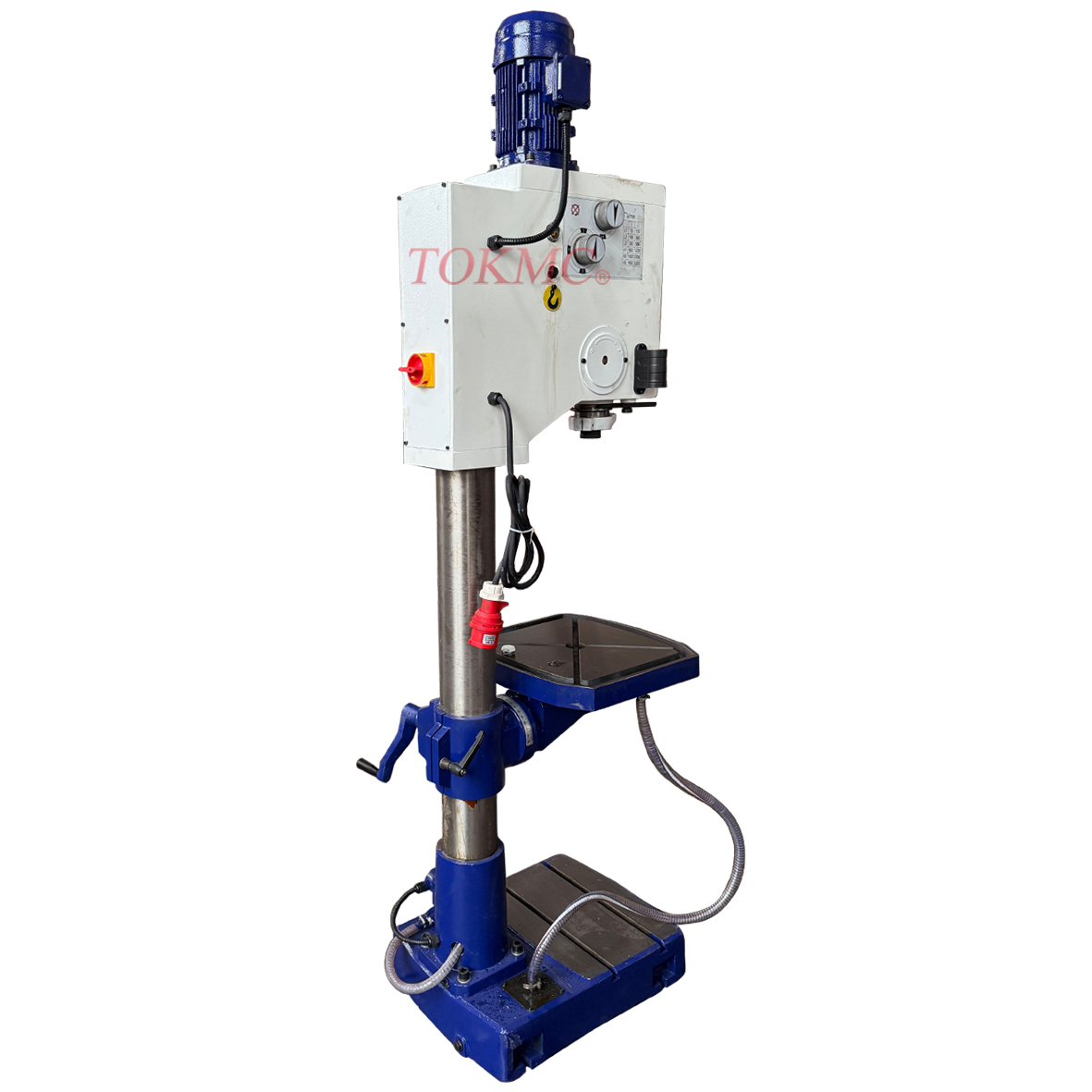

• Drilling, tapping, boring, reaming
•Strong column,Vice table,Gear drive, lower noise
•Heavy-duty tapered roller bearing spindle,Positive spindle lock
|
Model |
Unit |

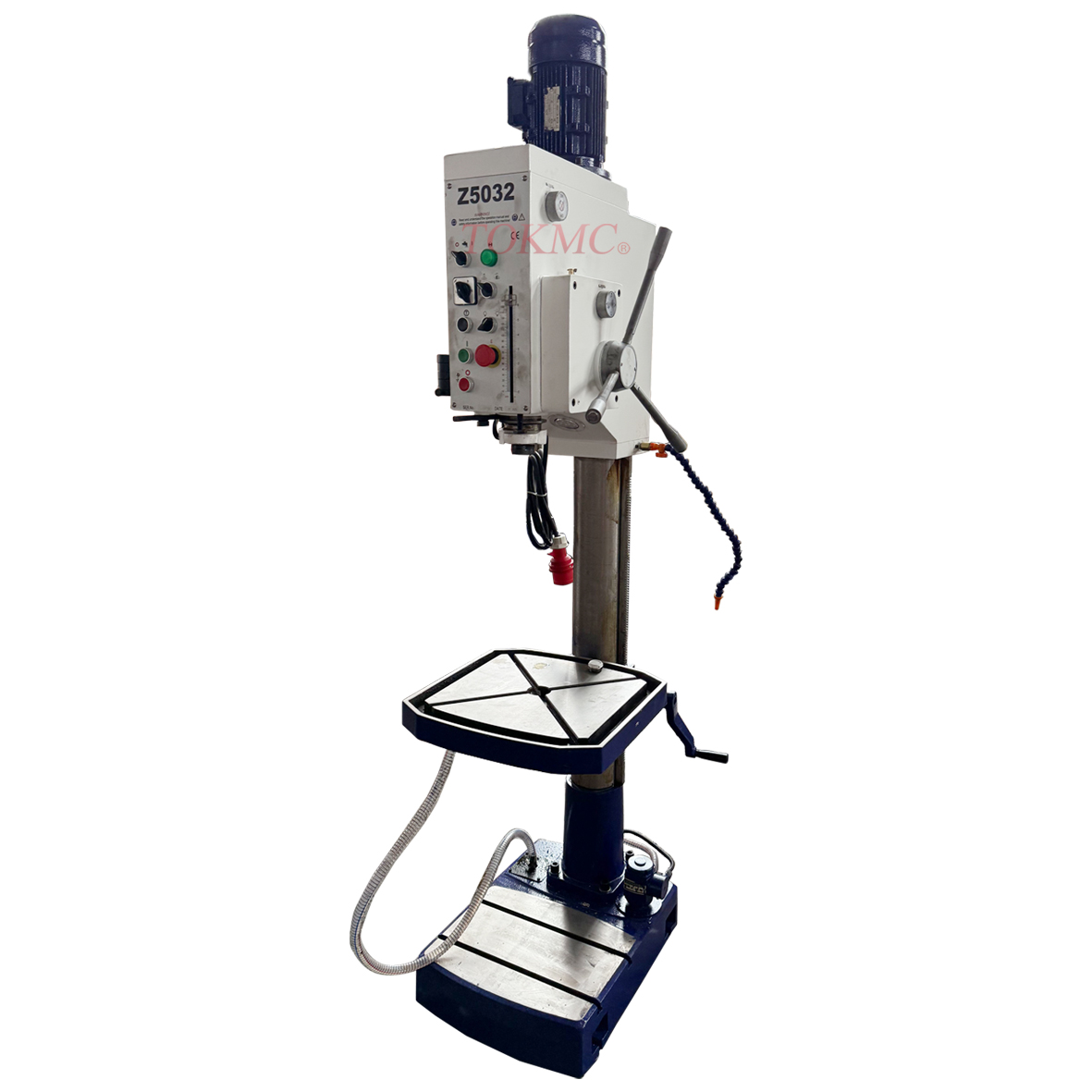

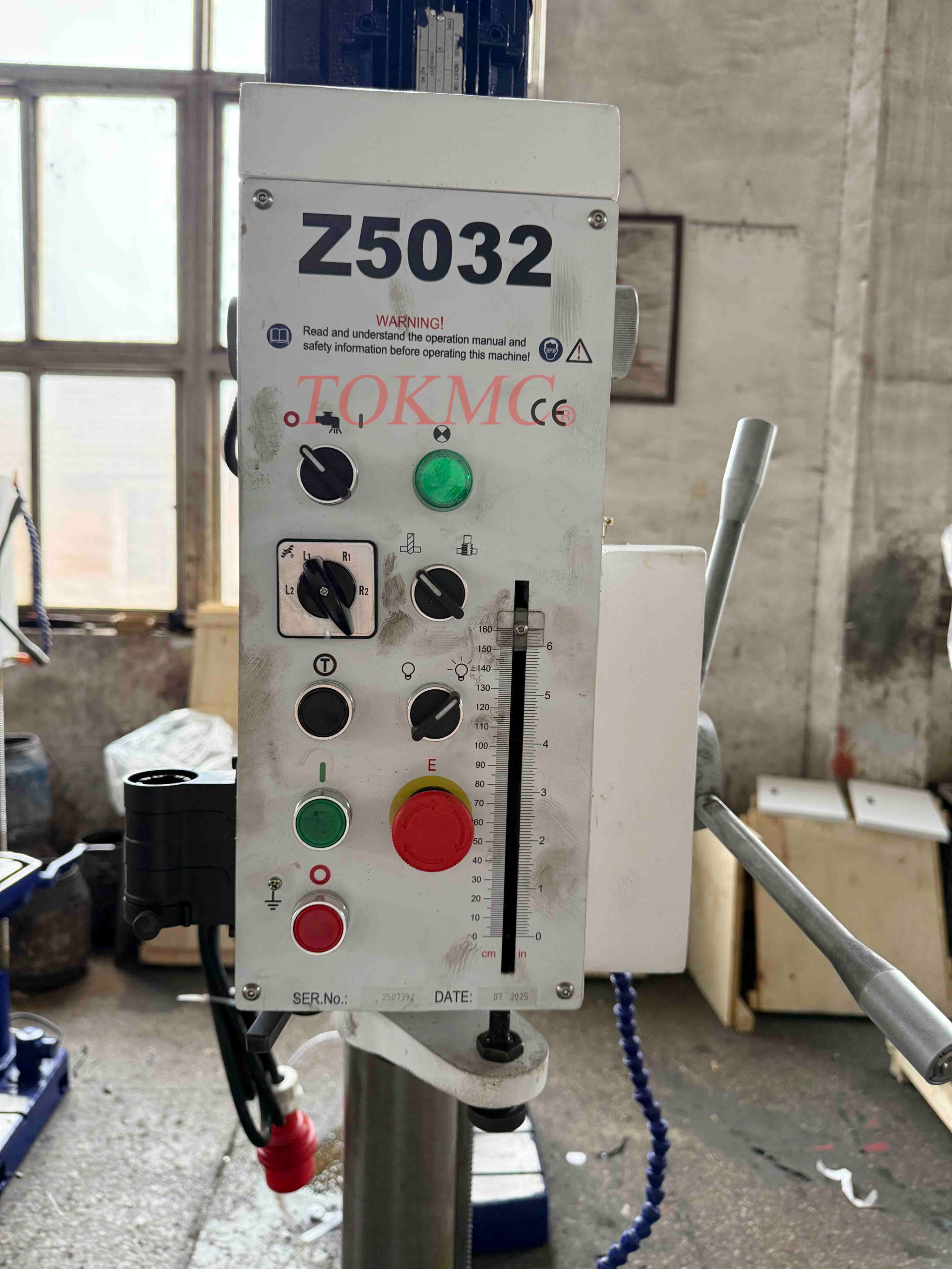

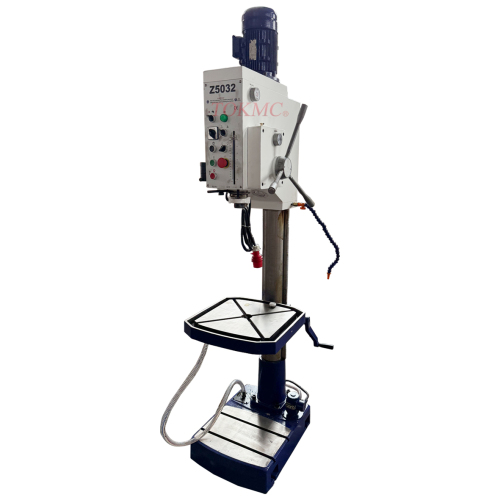

Z5032 |
|
Max.drilling capacity(iron/steel) |
mm |
32 |
|
Max.tapping capacity(iron/steel) |
mm |
22/20 |
|
Spindle taper |
Morse |
MT4 |
|
Worktable size |
mm |
460x460 |
|
Dimensions of base |
Mm |
620x540 |
|
Spindle travel |
Mm |
160 |
|
Distance between spindle center and center of column |
mm |
300 |
|
Distance from spindle nose to table surface |
Mm |
720 |
|
Distance from spindle nose to base parts |
Mm |
1200 |
|
The diameter of column |
Mm |
125 |
|
Spindle speeds range ,double speed motor |
Rpm |
75-3200 12steps |
|
The feed of spindle |
mm/r |
0.06/0.12/0.18 |
|
Motor power |
Kw |
1.5 / 1.1 |
|
Net weight and gross weight |
Kg |
340/400 |
|
Package size |
mm |
2200x540x750 |
