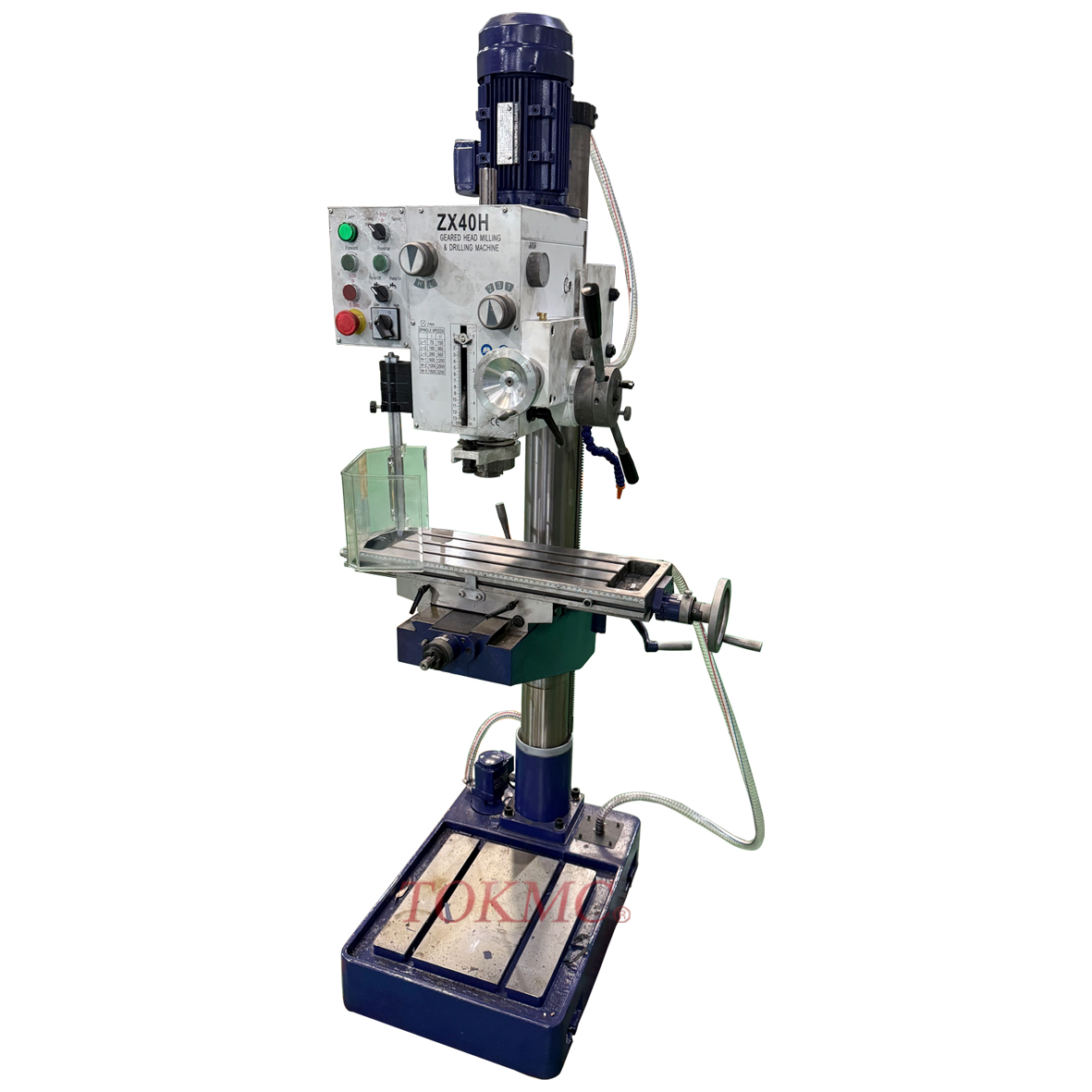

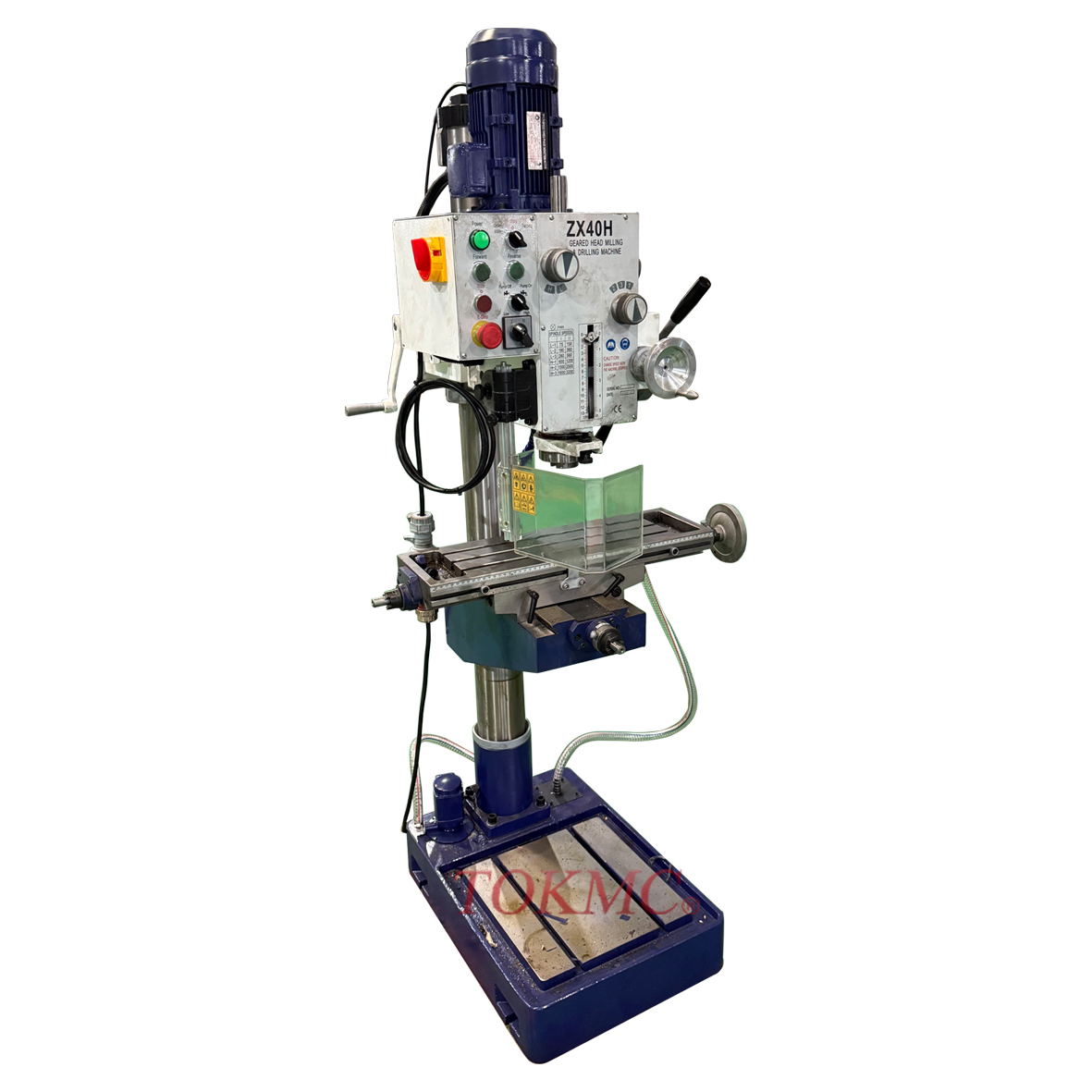

Features Of Drilling Milling Machine TOKMC ZX40H
1.Milling, Drilling, reaming, boring,
2.Head swivels 360°
3.Worktable up & down perpendicularly
4.Super high column
5.Micro feed precision
6 Geared drive, lower noise
7.Heavy duty tapered roller bearing spindle
8.Positive spindle lock
9.Halogen worklight
10.Coolant system
11.Tapping capability with auto retract
12.High precision P5 tapered roller spindle bearings
13.Power downfeed
14 45° right and left head tilt
15 Head and table vertical travel
16 Independent vertical head and table travel
|
Model |
Unit |
ZX40H |
|
Max.drilling diameter (iron/steel) |
mm |
Ф40/Ф30 |
|
Spindle taper |
Morse |
MT4 / MT3/R8 |
|
Dimensions of base parts |
Mm |
650x450 |
|
Spindle speeds 6 steps |
Rpm |
75-1600 (50hz) 3200rpm double speed motor |
|
Distance from spindle to column |
Mm |
278 |
|
Worktable size |
Mm |
600x190 |
|
Worktable travel |
Mm |
360x180 |
|
Spindle travel |
Mm |
120 |
|
Diameter of column |
Mm |
115 |
|
Max.Distance from spindle nose to base |
Mm |
1180 |
|
Motor power |
Kw |
1.5 |
|
Net weight /Gross. Weight |
Kg |
350/385 |
|
Packing size |
Mm |
830x760x1885 |
