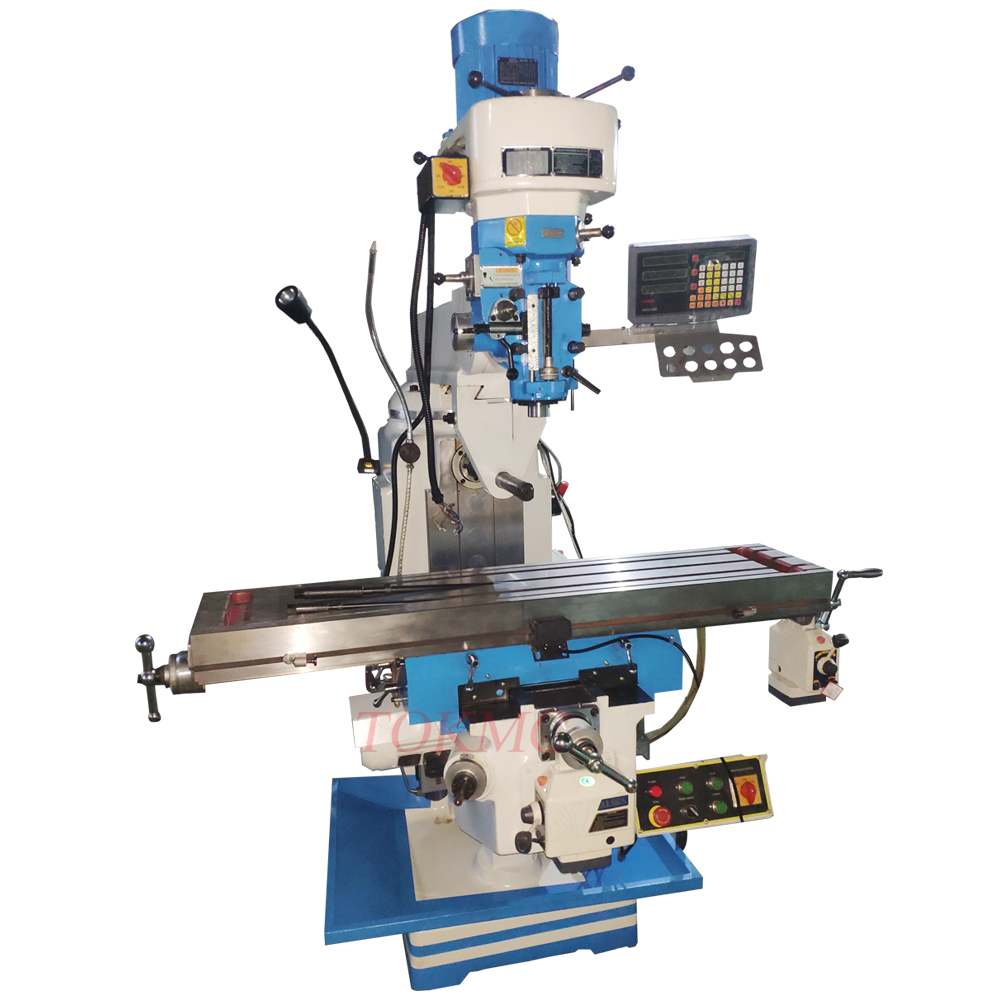

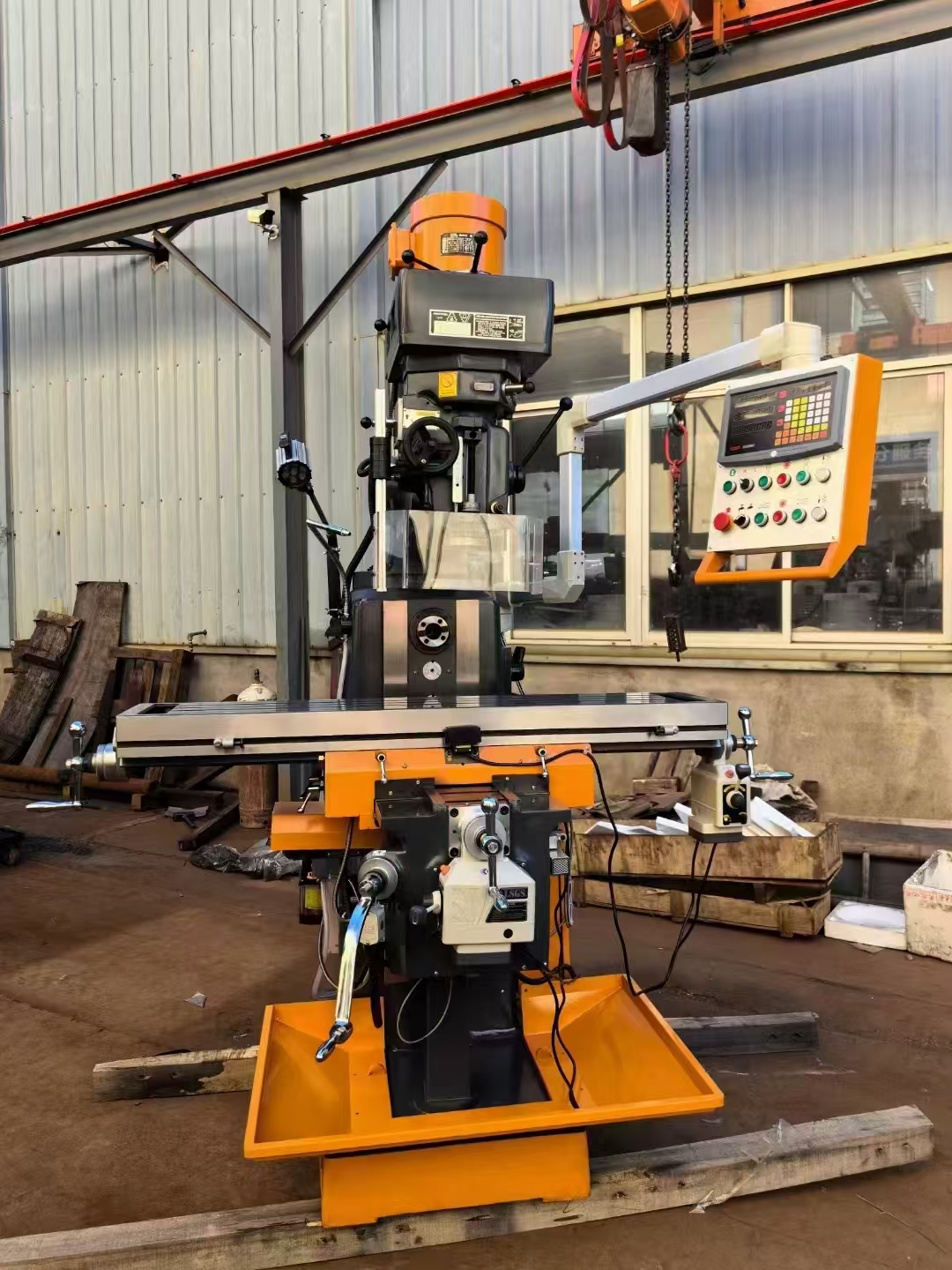

Specification |
Unit |
HW5 |
|
Worktable size |
Mm |
1370x305 |
|
Table travel X,Y,Z axes |
Mm |
800x420x420 |
|
Shape guideway on Y,Z axes |
|
Rectangular |
|
Spindle taper vertical |
|
R8 |
|
Spindle taper horizontal |
|
NT40 7:24 or ISO40 |
|
Distance from spindle nose to table surface |
mm |
150-480 |
|
Distance between spindle center to vertical guideway |
mm |
100-650 |
|
Spindle speed vertical |
Rpm |
75-4550 |
|
Spindle speed horizontal |
Rpm |
45-1300 |
|
T-slots no.width-pitch |
|
3-16-80 |
|
Spindle motor |
Kw |
2.2 kw vertical |
|
3kw horizontal |
||
|
Coolant pump |
Kw |
0.4 |
|
Machine size |
Mm |
1650*1760*2030MM |
|
Machine weight |
Kg |
1400 |
