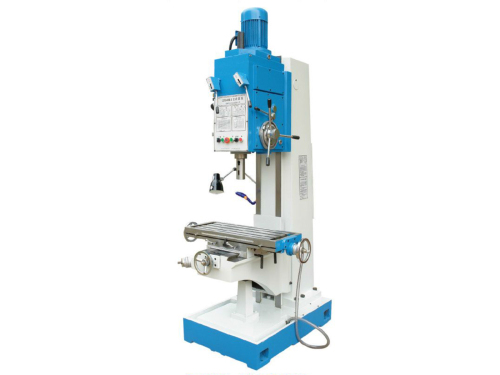

Vertical gear head drilling machine
|
Specification |
Z5140B |
Z5140B-1 |
Z5150B |
Z5150B-1 |
|
Max.drilling dia(mm) |
40 |
40 |
50 |
50 |
|
Maximum feed resistance(N) |
|
|
|
|
|
Max.The spindletorque(N.m) |
|
|
|
|
|
Spindle Taper |
MT4 |
MT4 |
MT5 |
MT5 |
|
Distance from spindle to guideway (mm) |
|
|
|
|
|
Spindle travel(mm) |
250 |
250 |
250 |
250 |
|
Spindle box(mm) |
200 manual |
200 manual |
200 manual |
200 manual |
|
Spindle speed range(r/min) |
31.5-1400 (12) |
31.5-1400 (12) |
31.5-1400 (12) |
31.5-1400 (12) |
|
Feed (mm/r) |
0.056-1.8 9steps |
0.056-1.8 9steps |
0.056-1.8 9steps |
0.056-1.8 9steps |
|
Table travel (mm) |
|
450/300 (X) |
|
450/300 (X) |
|
Table size (mm) |
560x480 |
800x320 |
560x480 |
800x320 |
|
Vertical travel(mm) |
300 |
300 |
300 |
300 |
|
Max. Distance from spindle to table surface(mm) |
750 |
750 |
750 |
750 |
|
Main motor (Kw) |
3 |
3 |
3 |
3 |
|
Coolant pump(L/min) |
|
|
|
|
|
Machine size(mm) |
1090x905x2530 |
1300x1200x2530 |
1090x905x2530 |
1300x1200x2530 |
|
Weight (Kg) |
1270 |
1370 |
1270 |
1370 |
