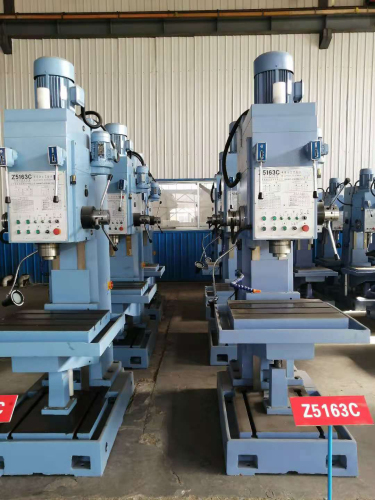

Heavy duty drilling machine
|
Specification |
Z51100 |
Z5180C |
Z5163C |
|
Max.drilling dia(mm) |
100 |
80 |
63 |
|
Maximum feed resistance(N) |
45000 |
30000 |
30000 |
|
Max.The spindletorque(N.m) |
1150 |
800 |
800 |
|
Spindle Taper |
Morse No.6 |
Morse No.6 |
Morse No.5 |
|
Distance from spindle to guideway (mm) |
480 |
375 |
375 |
|
Spindle travel(mm) |
310 |
250 |
250 |
|
Spindle box(mm) |
300 |
250 |
250 |
|
Spindle speed range(r/min) |
26-320,6 steps |
40-570,9 steps |
40-570,9 steps |
|
Feed (mm/r) |
0.096-0.717,6 steps |
0.1-0.78,6 steps |
0.1-0.78,6 steps |
|
Table travel (mm) |
300 |
300 |
300 |
|
Table size (mm) |
760-650 |
650-550 |
650-550 |
|
Vertical travel(mm) |
|
|
|
|
Max. Distance from spindle to table surface(mm) |
850 |
800 |
800 |
|
Main motor (Kw) |
7.5 |
5.5 |
5.5 |
|
Coolant pump(L/min) |
25 |
25 |
25 |
|
Machine size(mm) |
1465*970*3170 |
1452*965*2787 |
1452*965*2787 |
|
Weight (Kg) |
3500 |
2500 |
2500 |
