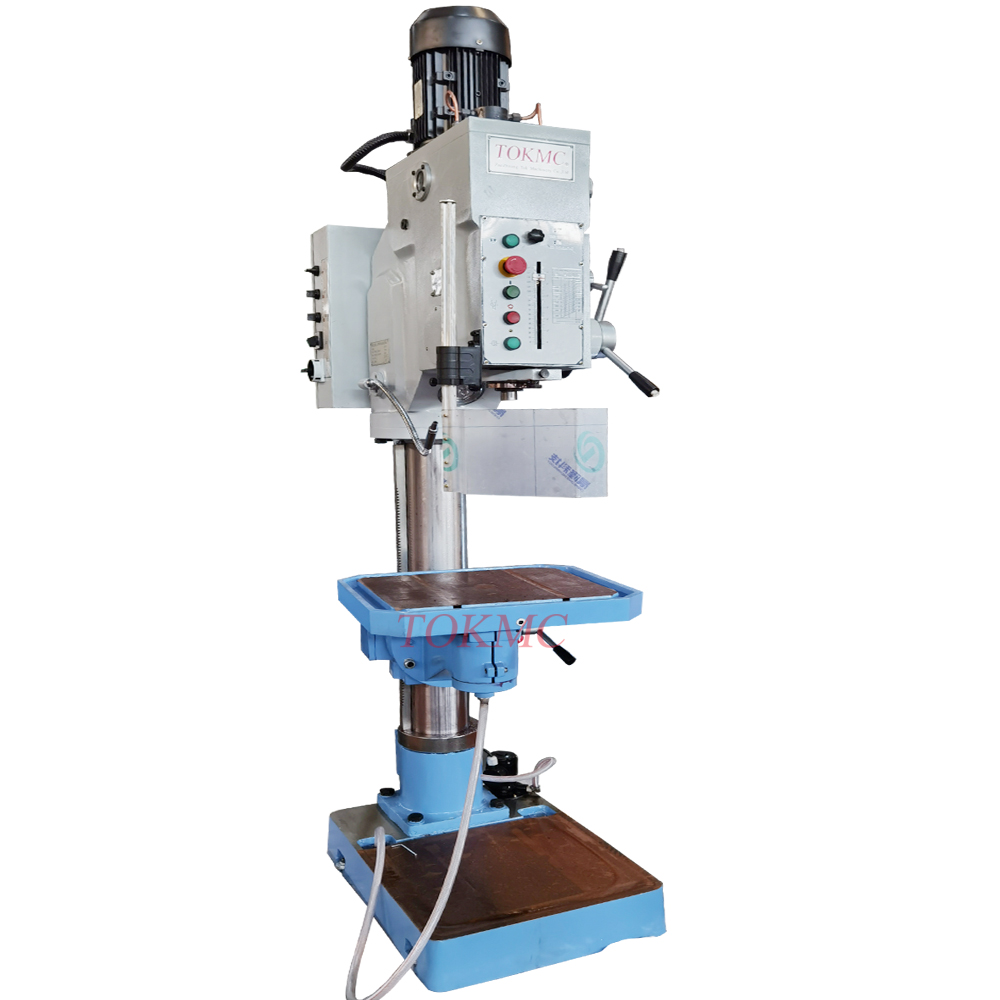

Vertical Drilling machine Z5035
|
Model //CODE NO. |
Z5035 |
|
Max.Drilling capacity (mm) |
35 |
|
Max.Tapping capacity (mm) |
M24 |
|
Diameter of column (mm) |
140 |
|
Spindle travel (mm) |
160 |
|
Distance spindle axis to column generating line (mm) |
330 |
|
Max.Distance spindle nose to table (mm) |
590 |
|
Max.Distance spindle nose to table (mm) |
1180 |
|
Spindle taper |
MT4 |
|
Spindle speeds range (r/min) |
75-2500 |
|
Spindle speeds series |
12 |
|
Spindel feeds (r/min) |
0.1 0.2 0.3 |
|
Dimension of worktable surface (mm) |
500×440 |
|
Table travel (mm) |
550 |
|
Dimension of base table (mm) |
400x390 |
|
Overall height (mm) |
2300 |
|
Main motor (KW) |
1.5/2.2 |
|
Goolant motor (W) |
40 |
|
G.W/N.W (kg) |
595/545 |
|
Packing dimension (cm) |
108×62×220 |
