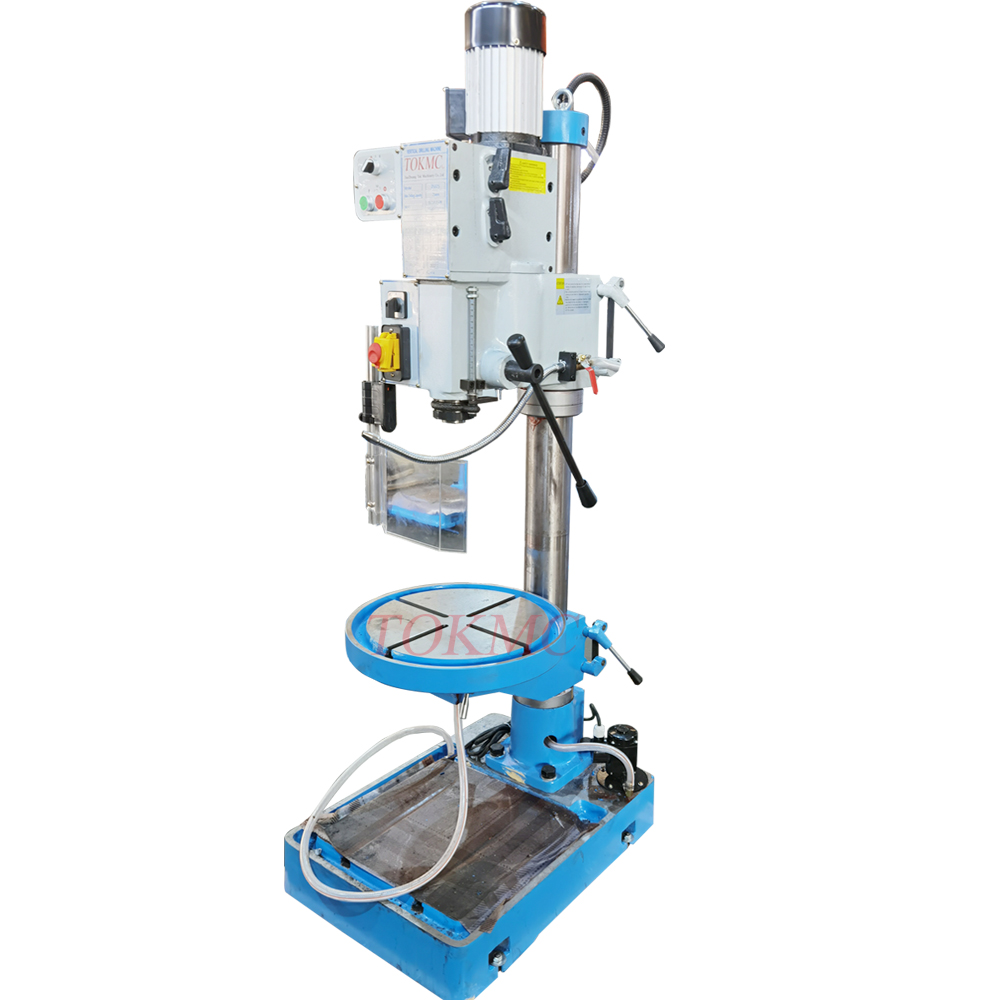

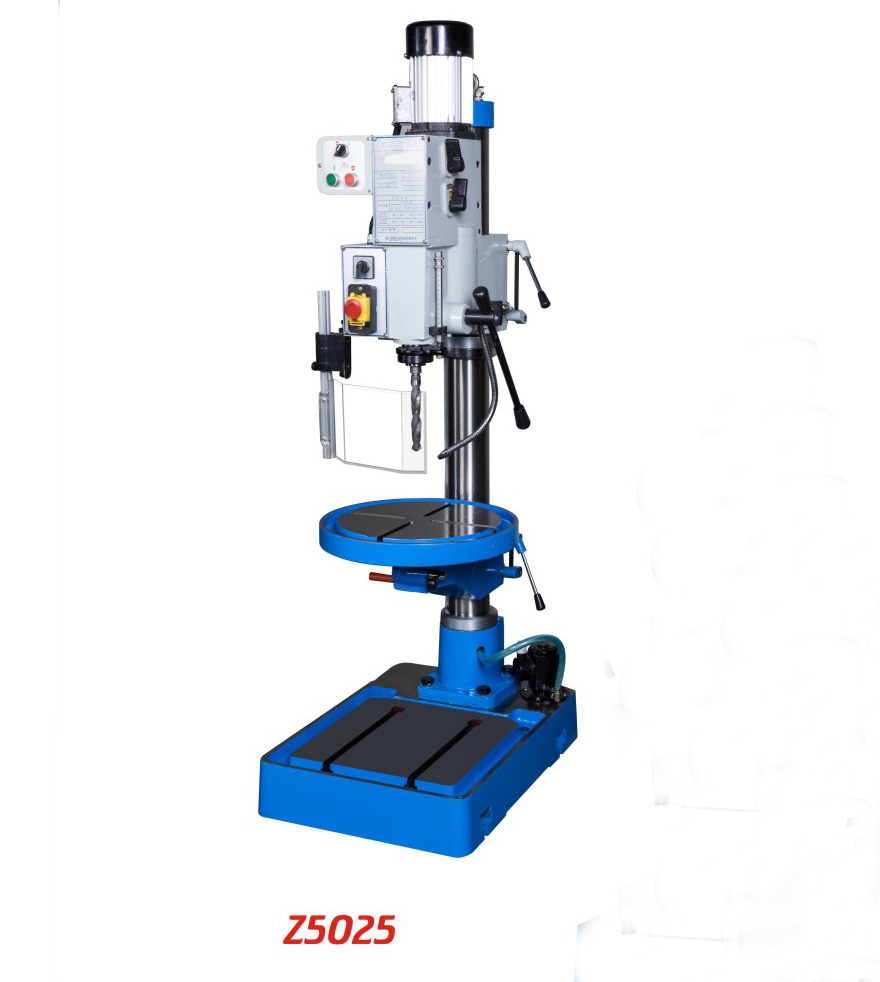

Pillar Drilling Machine Z5025
|
Model |
Z5025B |
Z5025 |
|
Max. Drilling capacity (mm) |
25 |
25 |
|
Diameter of column (mm) |
100 |
100 |
|
Spindle travel (mm) |
150 |
150 |
|
Distance spindle axis to column generating line (mm) |
225 |
225 |
|
Max. distance spindle nose to table(mm) |
/ |
630 |
|
Max. distance spindle nose to base(mm) |
550 |
1670 |
|
Spindle taper |
MT3 |
MT3 |
|
Spindle speeds range r/min |
100~2900 |
100~2900 |
|
Spindle speeds series |
8 |
8 |
|
Spindle feeds mm/r |
0.1 0.2 0.3 |
0.1 0.2 0.3 |
|
Dimension of worktable surface (mm) |
/ |
440 |
|
Table travel (mm) |
560 |
560 |
|
Dimension of base (mm) |
690x500 |
690x500 |
|
Overall height (mm) |
1390 |
1900 |
|
Main motor |
1.1/0.75 |
1.1/0.75 |
|
Coolant motor (w) |
40 |
40 |
|
G.W/N.W (kg) |
235/225 |
300/290 |
|
Packing dimension(LxWxH) (cm) |
78X52X117 |
70X56X182 |
