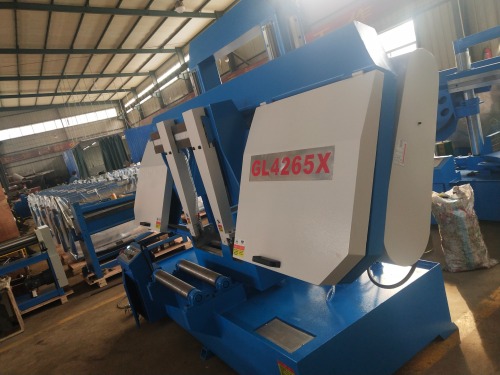

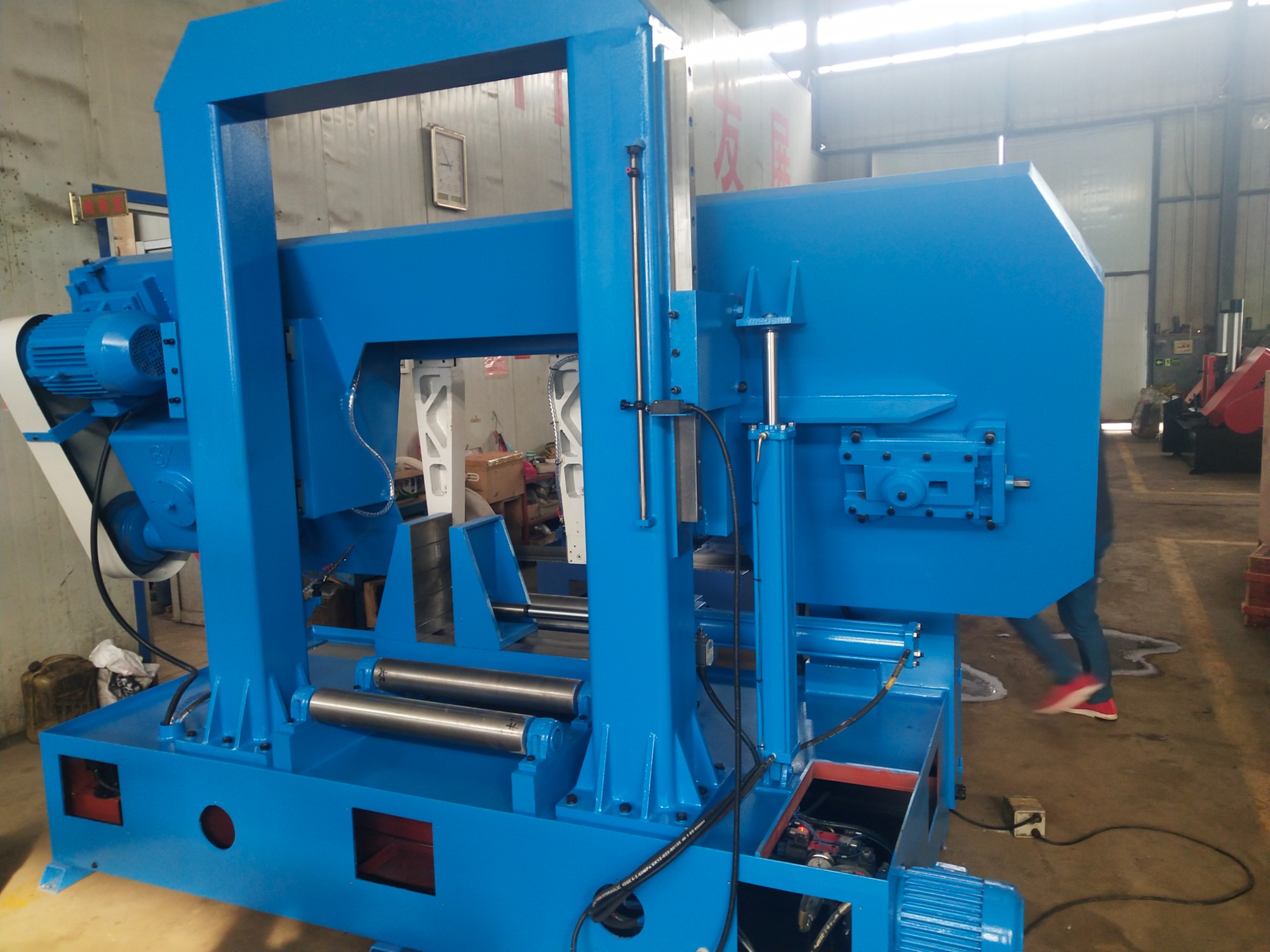

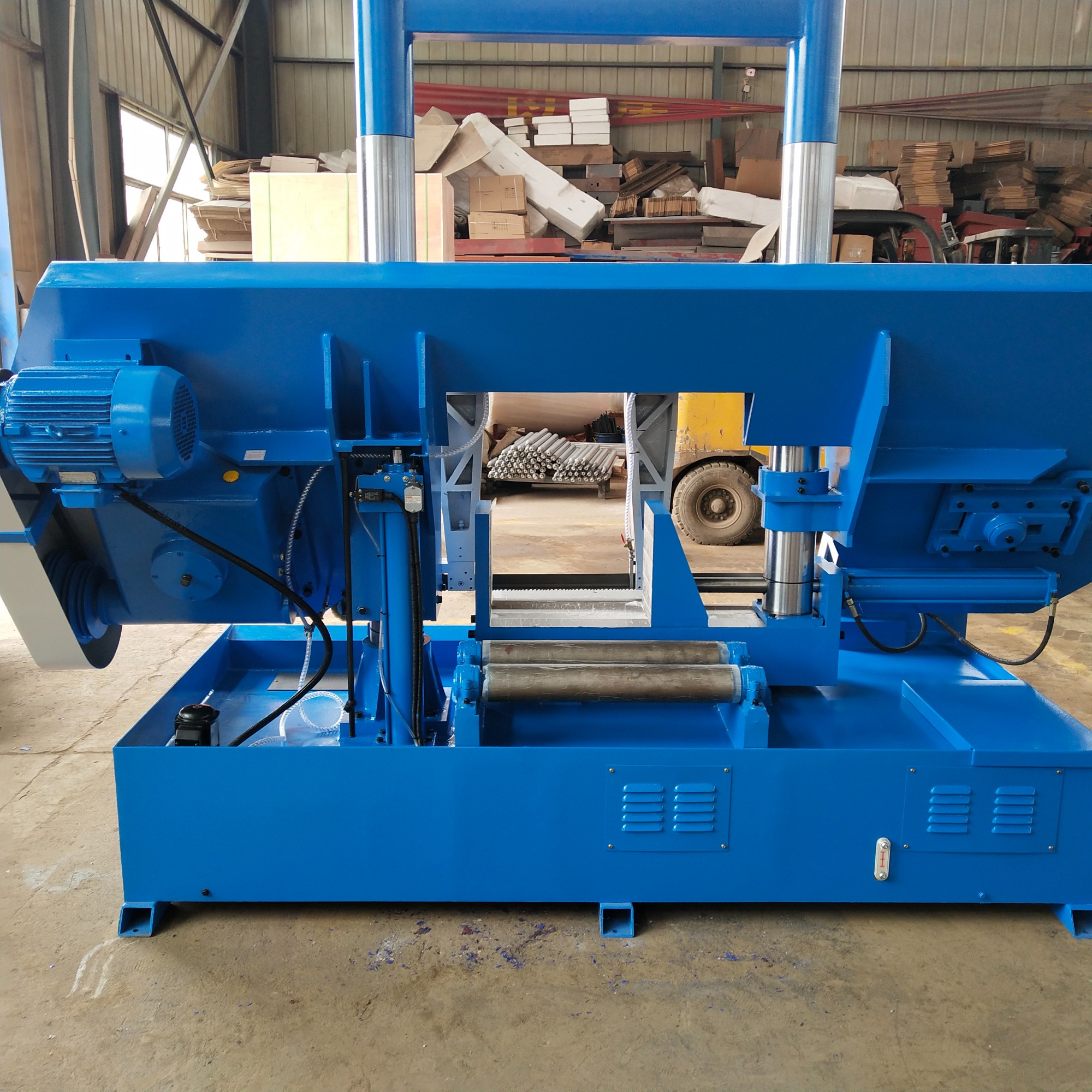

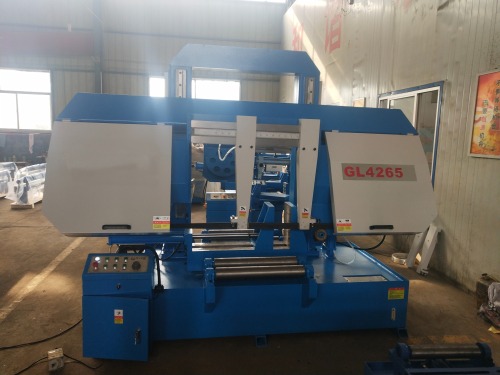

heavy duty double column saw machine

Item No.: 076
Double column horizontal band sawing machine.
hydraulic pressure control speed of saw blade.
Add to Inquiry

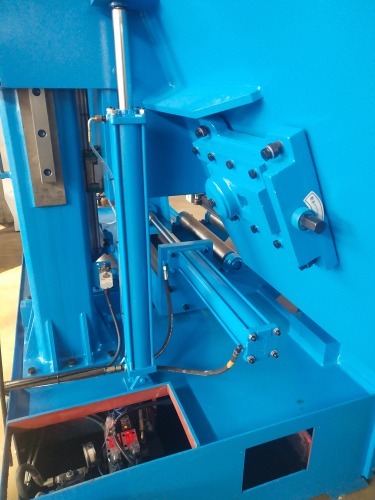

1.Saw frame travels across solid dual-column guides
2.Rigid, adjustable saw blade guides prevent lateral escape of the saw blade and ensure maximum angular accuracy
3.Ideally positioned control panel within comfortable reach on top of the saw frame
4.At the end of each sawing cycle, the saw blade frame will automatically return to the home position
5.Tthrottle valve allows infinitely variable saw frame feed
6.Two cutting speeds for a wide spectrum of materials and workpiece diameters
7.Manually adjustable workpiece clamping and linear stop
8.Coolant system
Specifications GH4260
Sawing range Round steel Φ600mm
Square material 600×600mm
Belt saw blade  size 6600x54x1.6mm
Saw blade speed 30,50,80m/min
Motor power Main motor 7.5kw
Oil pump motor 1.5kw
Cooling pump motor 0.125kw
Overall dimension 3400x1600x2200mm
Specifications GH4265 GH4270
Sawing range Round steel Φ650mm Φ700mm
Square material 650×650mm 700×700mm
Belt saw blade  size 6800x54x1.6mm 7205x54X1.6mm
Saw blade speed 30,50,80m/min 30,50,80m/min
Motor power Main motor 7.5kw 7.5kw
Oil pump motor 1.5kw 1.5kw
Cooling pump motor 0.125kw 0.125kw
Overall dimension 3500x1600x2400mm 3500x1800x2500mm
