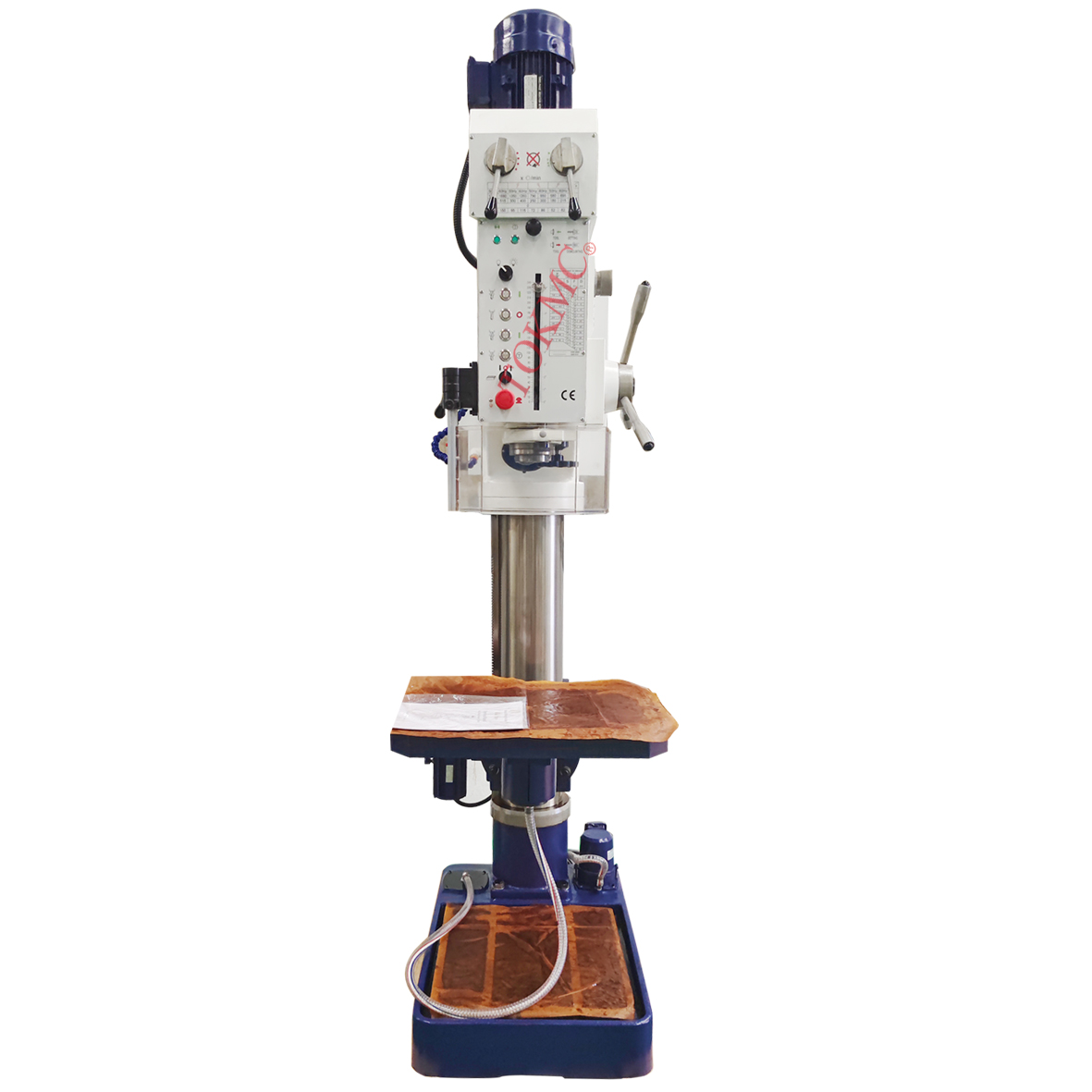

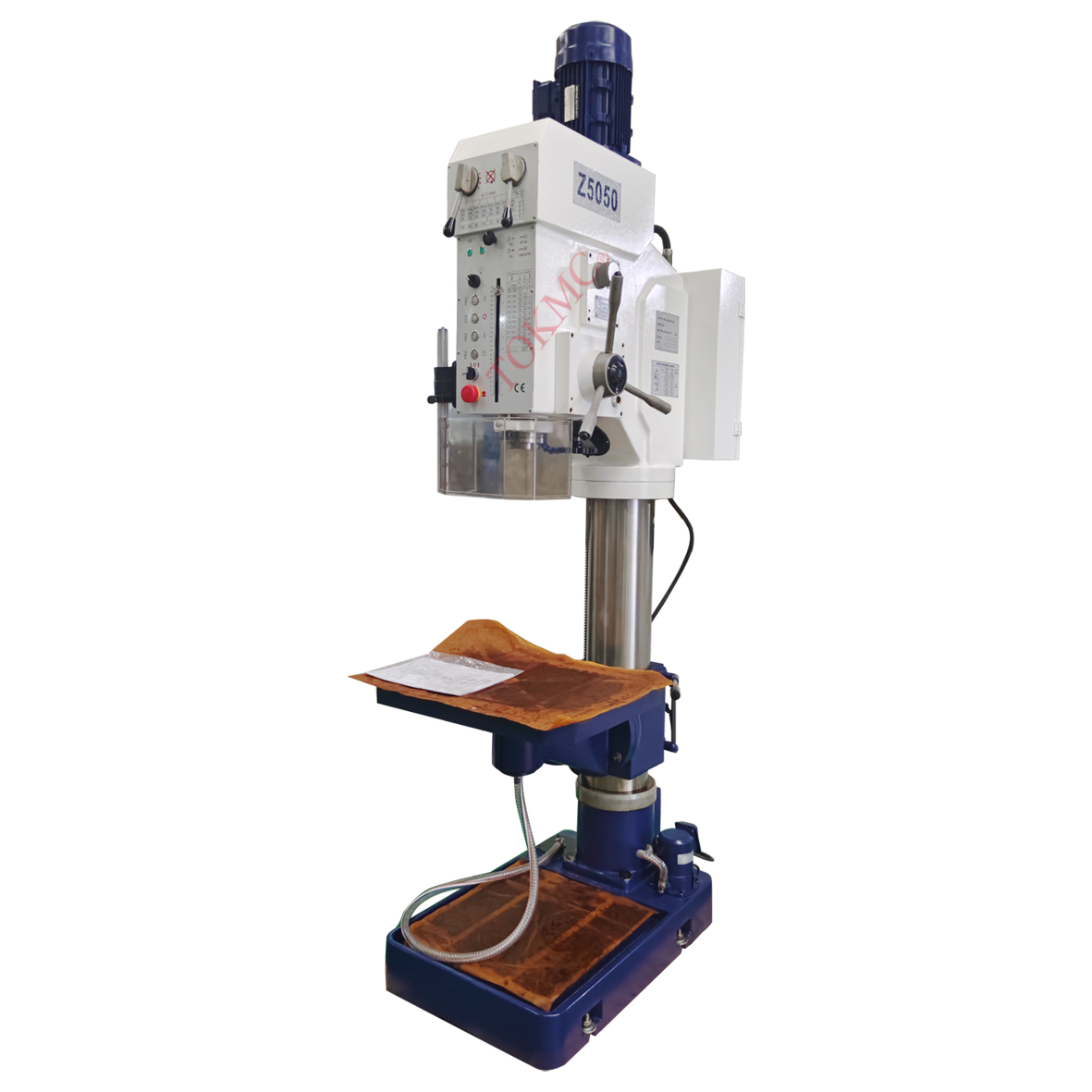

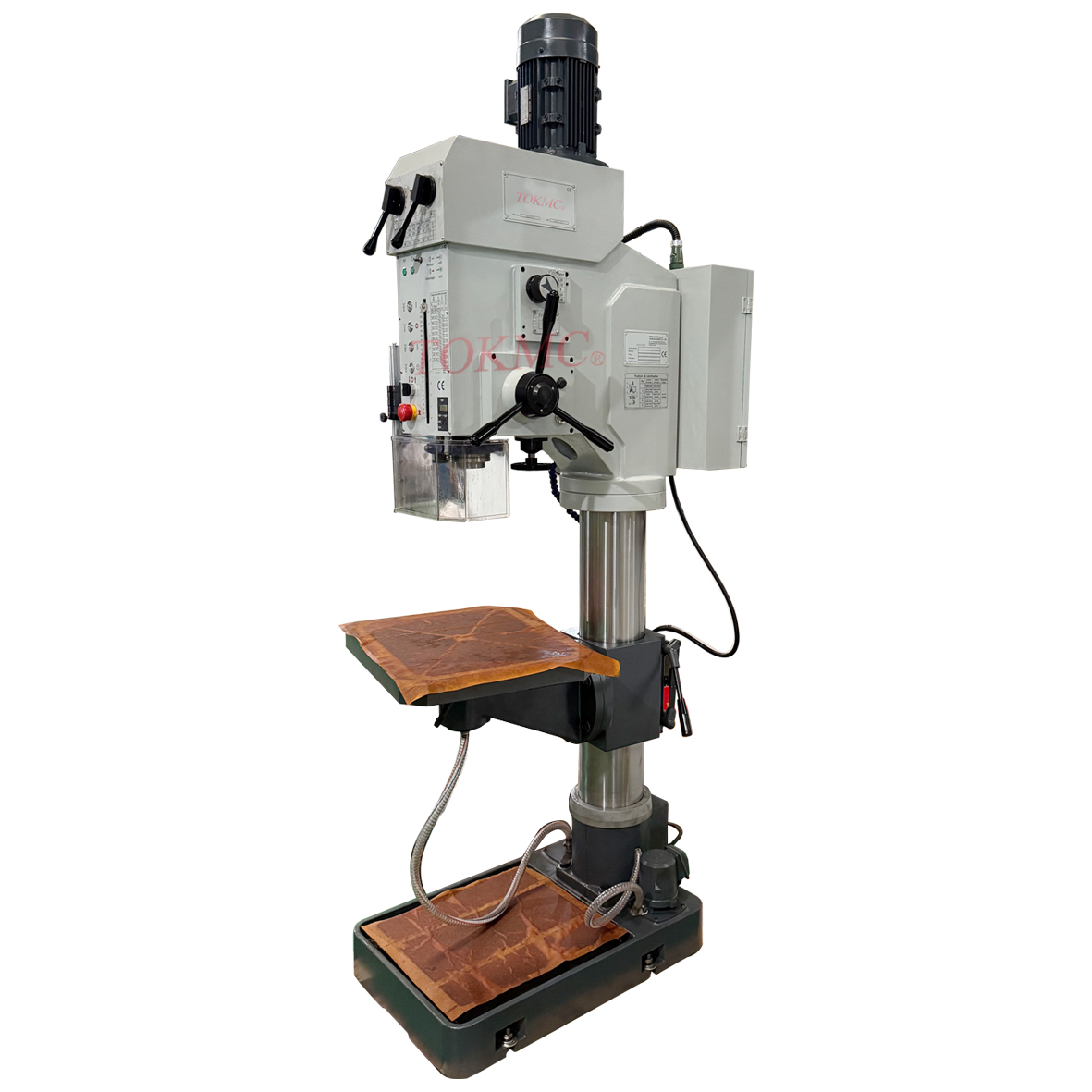

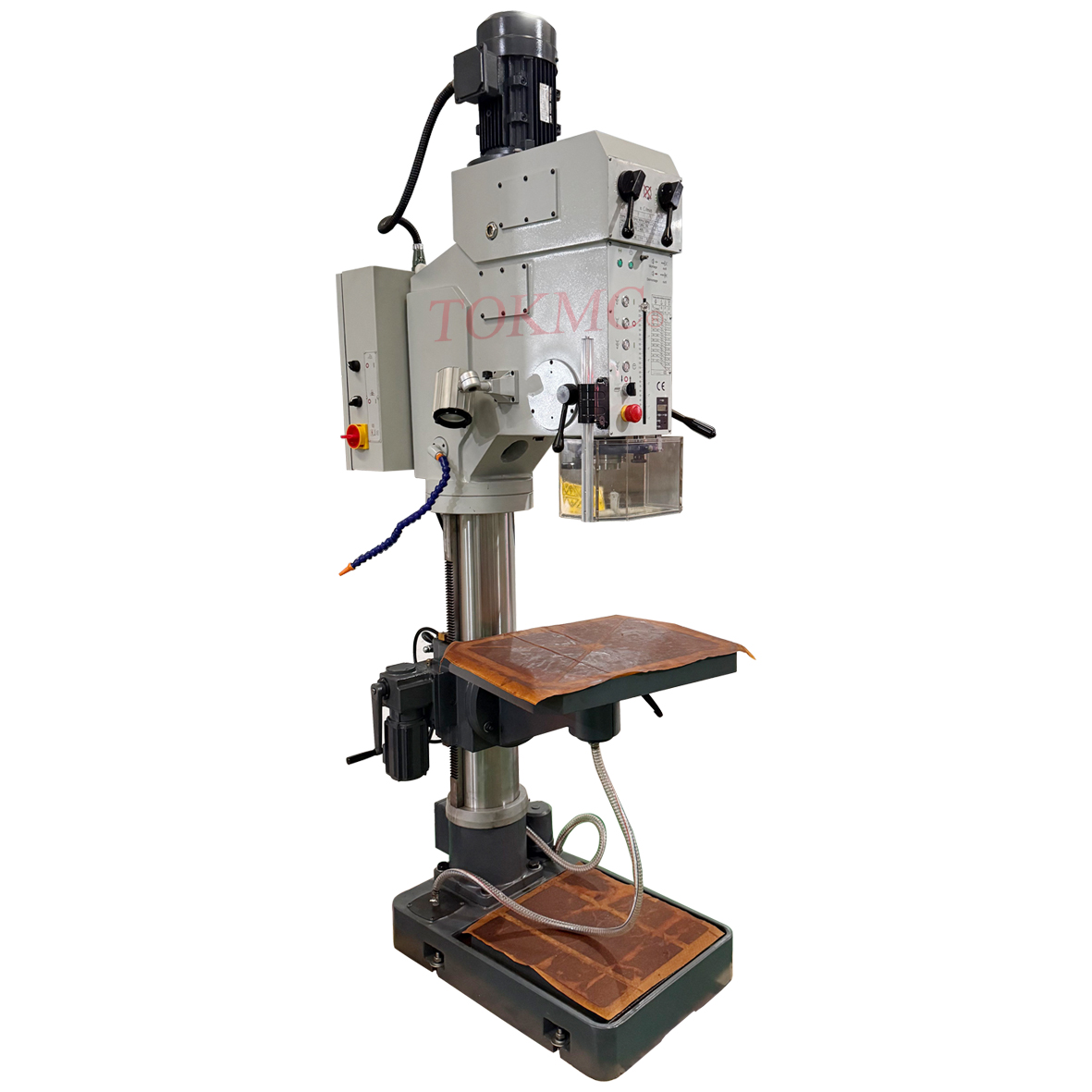

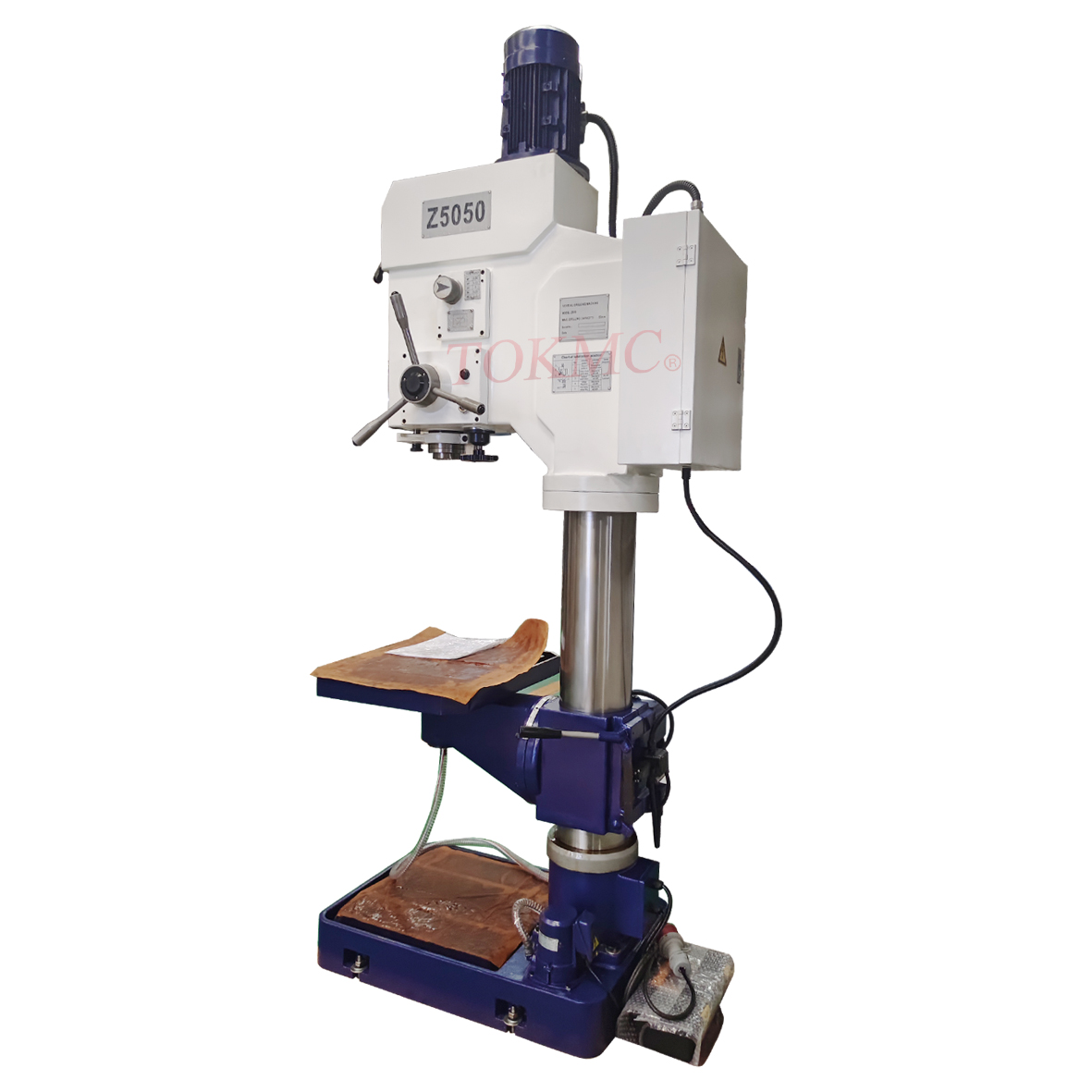

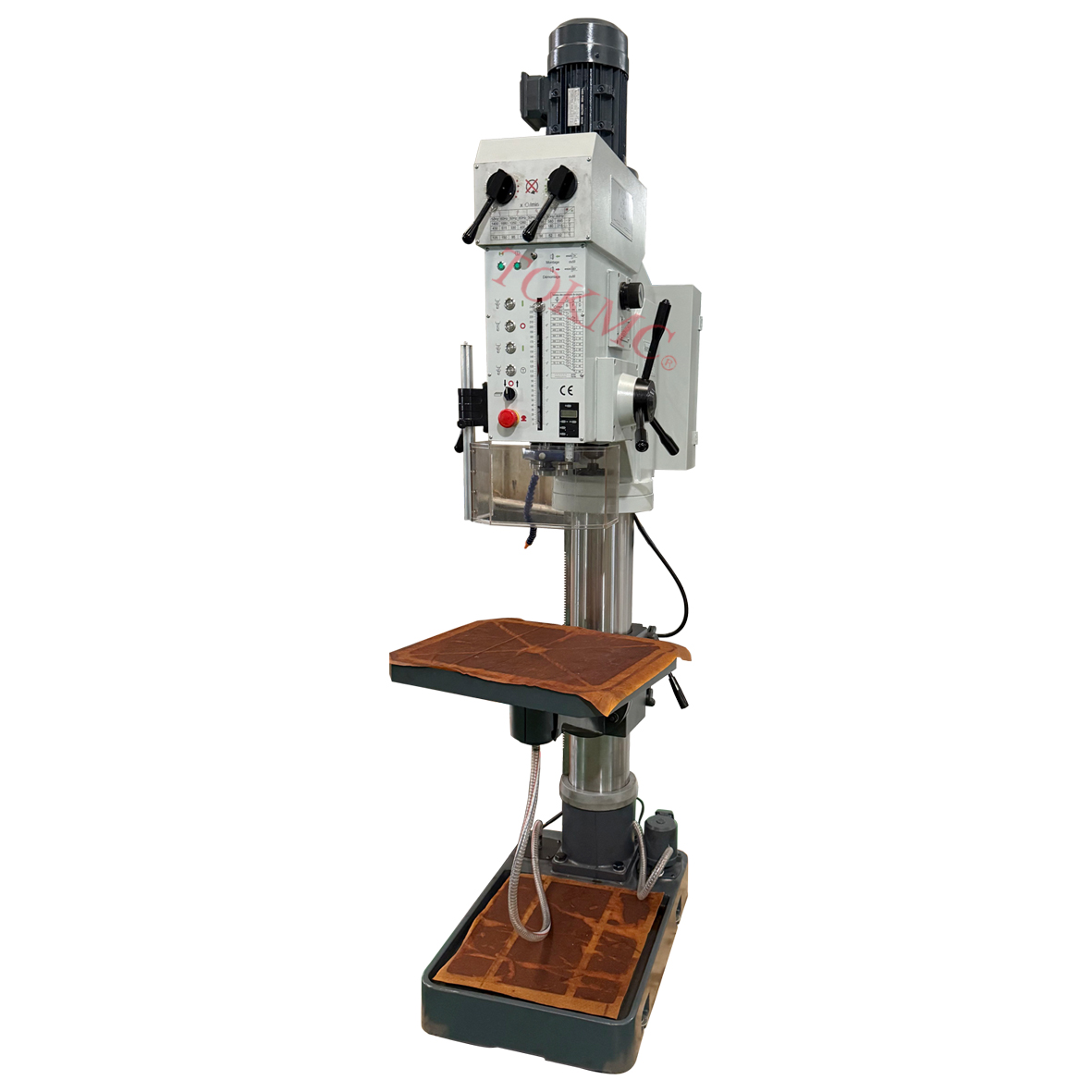

Main Advantages of Vertical Column Drilling Machine Z5050
High machining capacity – maximum drilling diameter of 50 mm and tapping capacity up to M22 in steel allow for versatile use.
Tapping function – reversible rotation and four-step spindle feed (0.1–0.4 mm/rev) ensure precise, stable thread cutting.
Automatic spindle feed – enables efficient drilling without constant manual control.
Wide speed range – 18 spindle speeds from 55 to 1450 rpm allow full adaptation to different materials and tooling.
|
Tokmc Drilling Machine |
Unit |
Z5050 |
|
Max.drilling diameter |
mm |
50 |
|
Max.tapping diameter |
mm |
M30 |
|
Distance between spindle center and center of column |
mm |
450 |
|
Max.distance from spindle to work table (auto) |
mm |
600 (450) |
|
Max.distance from spindle to base parts |
mm |
1180 |
|
Max.spindle travel |
mm |
240 |
|
Spindle taper |
Morse |
MT4 |
|
Number of spindle speed |
|
12 |
|
Spindle speed |
Rpm |
52-1400 |
|
The step number of spindle feed |
|
4 |
|
The range of spindle feed |
Mm/r |
0.1-0.4 |
|
The travel of work table and bracket |
mm |
450 |
|
Rotation of worktable and bracket |
Degree |
±45° |
|
Tokmc Working area of work table (Length x width ) |
mm |
480x460 |
|
Dimension of base parts |
mm |
800x525 |
|
T-slots on worktable and base (number and picth ) |
|
2-T14/ 2-T18 |
|
Diameter of column |
mm |
180 |
|
Power of main motor |
kw |
3 |
|
Lifting motor power on worktable |
kw |
0.25 |
|
Coolant pump motor |
kw |
0.09 |
|
Machine dimension |
cm |
112x68x218 |
|
Net weight and gross weight |
Kg |
630/690 |
Standard accessory : Halogen work light,spindle protective guard, coolant pump. Auto lifting worktable, auto spindle feed
Optional : LED work light, Electric depth display, electronic control screen.
