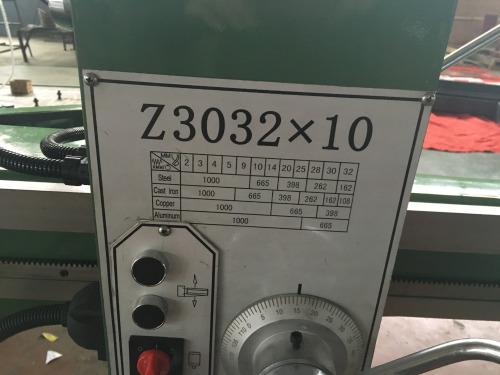

Radial drilling machine ZQ3032x10

Item No.: 119
Request Quote
Description
Item ZQ3032×10 ZQ3035×10
Max.drilling dia. Iron 32/ steel 32 Iron 35 /Steel32
Spindle taper MT4 MT4
Spindle travel of spindle 6 6
Distance from spindle center to column surface 260-900 300-1000
Distance from spindle nose to base surface 220-1100 260-1000
Vertical travel of spindle 120 180
Overall dimensions(L×W×H) 1400×700×1880 1450×700×2050
Main motor 0.85/1.5 0.85/2.2
Motor power of airm 0.55 0.55
Machine weight 900 1100
